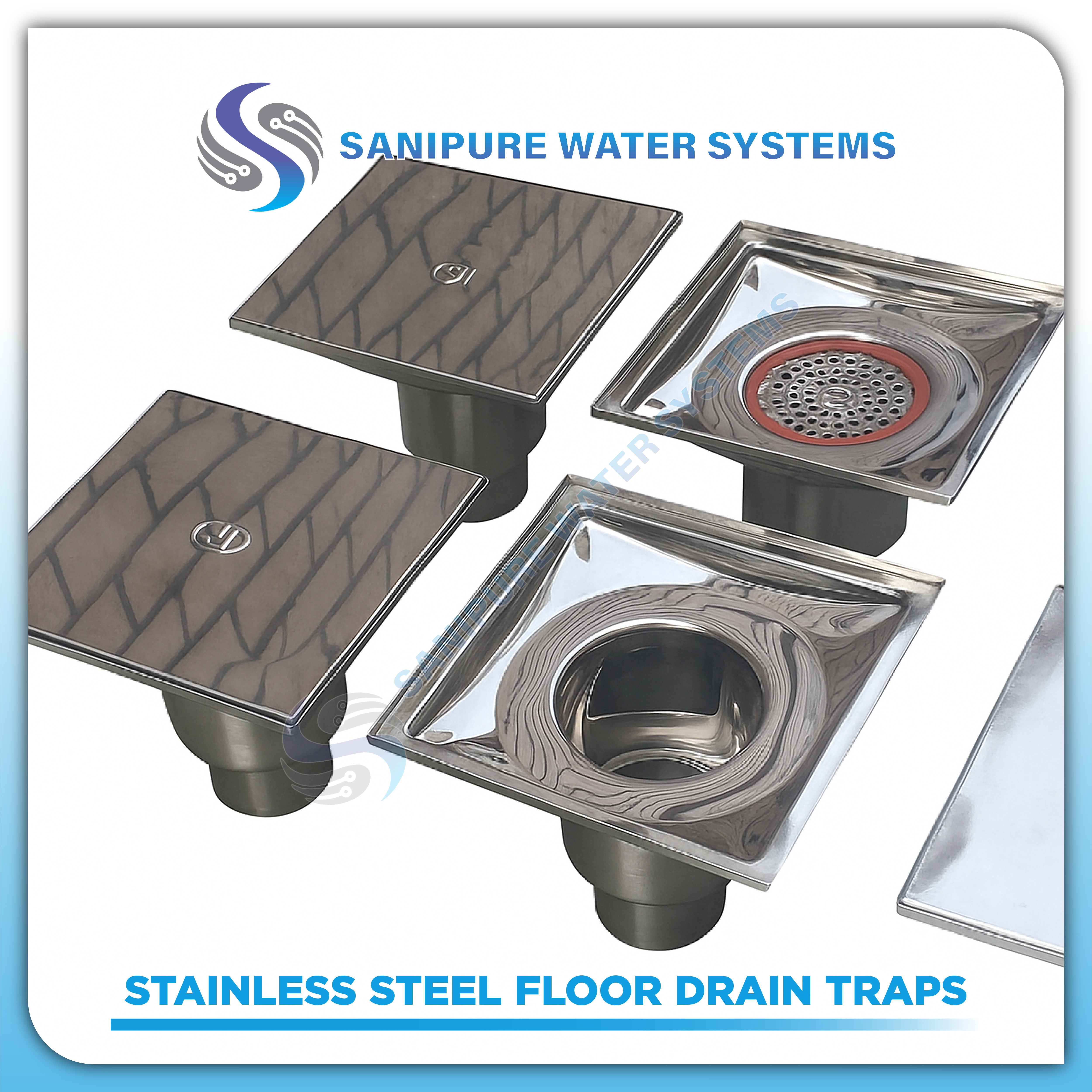

Premium Stainless Steel Floor Drain Traps engineered for high-purity Pharmaceutical, Food Processing, Dairy, Beverage, Chemical. GMP-compliant, mirror-finished, built to last decades.
Sanipure Water Systems manufactures premium Stainless Steel Floor Drain Traps fabricated from certified SS 316L, designed for demanding pharmaceutical and industrial reverse osmosis systems.
Each unit features a seamless, crevice-free architecture with full-radius internal junctions, mirror-polished to Ra < 0.4µm, ensuring bio-burden control and 100% material recovery during CIP cycles.
Custom configurations available. Contact technical sales for bespoke sizing and port arrangements.
Every unit pressure-tested and dimensionally verified before shipment to ensure compliance within specified tolerances.
Single-piece orbital-welded construction guarantees zero crevices where biofilm could develop between service cycles.
Mandatory mirror polishing on all fluid-contact surfaces, verified with calibrated profilometer for each production batch.
Traceable material test certificates (EN 10204 3.1) supplied as standard for pharmaceutical facility audit packs.
| Housing Size | Shell OD (mm) | Working L (mm) | Pressure |
|---|---|---|---|
| 2.5" × 21" | 76 | 540 | ✓ 150 PSI |
| 4" × 40" | 114 | 1030 | ✓ 150 PSI |
| 4" × 40" HP | 114 | 1030 | ▲ 300 PSI |
| 8" × 40" | 219 | 1030 | ✓ 150 PSI |
| Custom | On Request | On Request | ↑ 600 PSI |
Radius floor-to-wall junctions ensure no liquid residue remains post-transfer, preventing cross-batch contamination between cleaning cycles.
Full-penetration weld joints pressure-tested to 1.5× working pressure, with traceability to individual weld operator records.
Sanitary clamp end-cap design enables membrane cartridge replacement in under 5 minutes without specialized tooling.
Heavy-duty wall schedule prevents distortion under operating pressures or thermal cycling in hot-sanitization loops.
Side ports, permeate ports, brine ports, and instrument nozzles can be positioned per your P&ID drawings. We work from your CAD files or our standard templates.
Optional factory-fitted gauge nozzles, vent valves, and drain connections reduce on-site fabrication time and ensure hygienic port alignment.
Individual unit serial numbers and customer-specified tag IDs laser-etched permanently for facility maintenance schedules and audit traceability.
We supply pre-assembled multi-vessel RO skids with common headers, instrumentation, and structural frame for rapid site installation.
Sanipure Water Systems delivers more than stainless steel equipment — we deliver facility integrity. In a pharmaceutical water system, a single imperfect weld is a multi-million dollar liability.
Our engineering team has deep domain knowledge of FDA, WHO-GMP, and EHEDG standards, ensuring your validation documentation is complete before the equipment arrives on-site.
We recommend housing configurations based on your flow rates, membrane specs, and operating pressures.
Full IQ/OQ documentation templates and traceability records for your QA records.
Guidance on seal materials and finish selection for caustic CIP, hot water, and ozone sanitization.
ISPM 15 wooden crating, full documentation, and tracked shipping to your destination port.
Serving pharmaceutical and industrial facilities across India, SE Asia, Middle East, and Africa.
Our technical team responds to all enquiries within 24 hours. Whether you need standard configurations or fully custom membrane housing skids, we provide the engineering support you need.
Connect with our engineering lead directly for rapid technical response.
